Most hazardous area cable gland manufacturers A2F & E1WF type glands have a special condition for safe use requiring cables to be clamped to prevent twisting or pulling. EN60079-14 states that “a clamp should be placed as close as practical to the gland” - preferably within 300mm from the end of the gland. EN60079-14 also states that cables shall be routed straight to prevent the cable seal being compromised by lateral tension.

A poorly supported cable compromises the integrity of the equipment, invalidates the Hazardous Area certification and most importantly poses a serious safety risk to both plant and personnel.

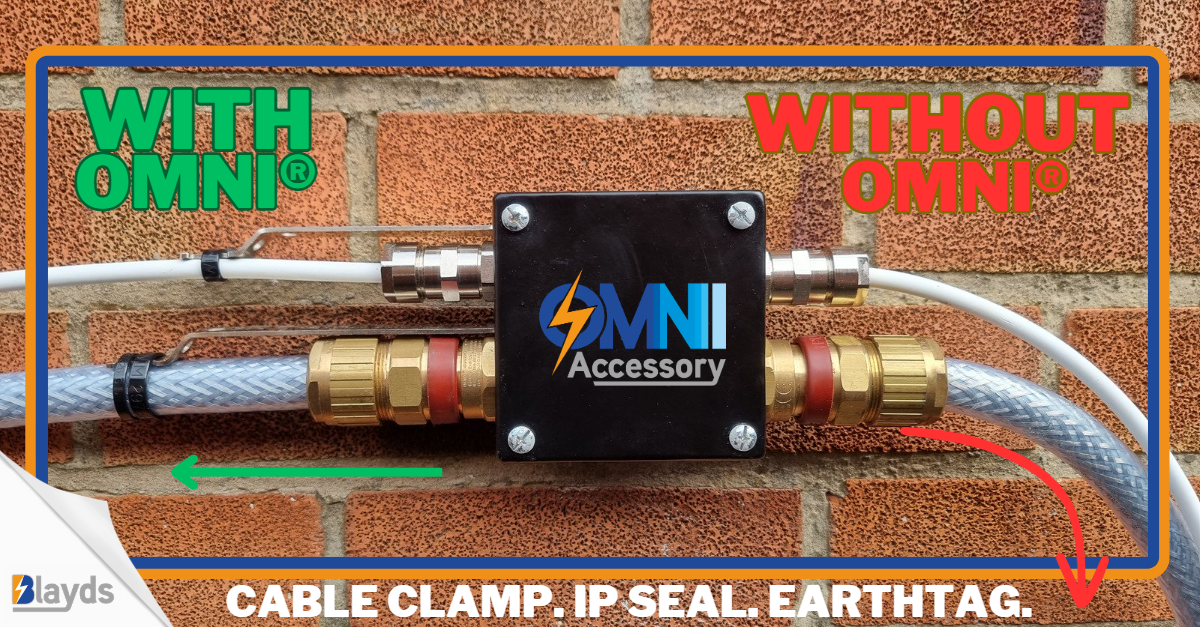

Compatible with most major gland designs, the Omni® Accessory from Blayds Group ensures that cables are routed straight from the cable gland - preventing twisting or pulling of the cable whilst in operation. This securing of the cable also stops unnecessary pressure on the gland IP seal – a common place for water ingress. Manufactured from nickel plated brass, the Omni® Accessory also provides an earth connection, bonding point, integrated high-temperature silicone Ingress Protection washer and a cable identification location all in one easy-to-install accessory. The design also allows for disassembly and inspection of the gland without the need to move the cable marker as is often the case in many standard installations.

So, to make sure your installation is fully compliant, fit the Omni® Accessory. One part – multiple benefits. To receive a free sample simply email This email address is being protected from spambots. You need JavaScript enabled to view it. or visit www.blayds.com for more information
